Many advanced technique to achieve international standard

Reach max.25.4mm thickness

Beveling Efficiency:≤2 mins/two cuts( DN200 SCH40)

Advance tool feed: servo radius feeding

Graphic parameter input programing, less requirement on operation skill

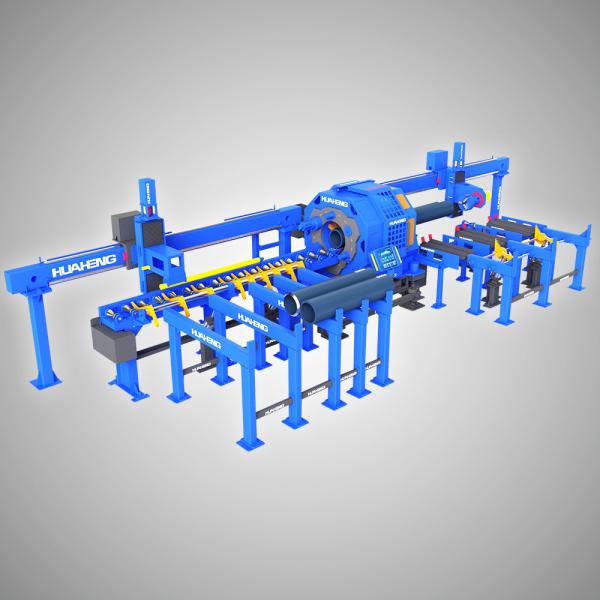

The pipe go through the machine body, clamped automatically; the tool plate start to rotate, finish two cut and bevels in one time

Suitable material: CS, SS, Alloy steel

Bevel type: V bevel

Suitable pipe diameter: DN60-300(Ф60-325mm)

Suitable material: CS, SS, Alloy steel

Pipe wall thickness: 3-25mm

Tool feeding: Radial servo feeding

Driving: electric motor

Pipe Clamping: Adjustable pressure hydraulic clamping chucks pneumatic (hydraulic) clamping

Controlling: digital + PLC + Touch screen

Prevent oxidize by coolant while cutting stainless steel.

Machine center adjustment: suspension system to adjust the center height according to different pipe diameter (suitable to the conveyer line)

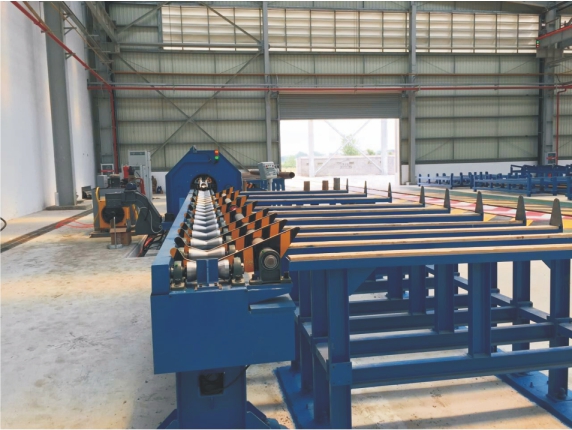

Optional conveyer system and pipe feeding/length measurement system can assembled as production line.

The company currently has one research and development center and three production bases, as well as twelve subsidiaries both domestically and internationally. The company employs nearly a thousand staff members. The technical research and development center covers an area of nearly 40,000 square meters and includes the Overseas Welding Technology International Joint Laboratory, Jiangsu Province Welding Automation Equipment Key High-tech Research Laboratory, Jiangsu Province Robot Automation Equipment Engineering Laboratory, and a National Enterprise Postdoctoral Research Workstation. The company has successfully undertaken and completed 16 national-level scientific and technological projects related to machine applications and intelligent equipment, including the National High-tech R&D Program (863 Program), Torch Program, Key National Products Program, and Major National Science and Technology Projects. It has participated in the formulation of six national and industry standards related to welding robots, spraying robots, and automated welding communication. The company is a national-level demonstration enterprise for intellectual property rights and has been granted 435 authorized patents (including 140 invention patents), 200 software copyrights, and 48 registered trademarks in China.

The company has established production facilities in Kunshan, Xuzhou, and Changsha, with a total area of over 180,000 square meters. Its main products include automated welding production lines, intelligent logistics and warehousing systems, automated welding and cutting equipment, as well as planetary gear reducers. The business covers various stages such as project planning, research and development, design, complete equipment production, assembly, integrated debugging, and sales, providing turnkey engineering services for overall solutions.

The company's products are widely used in the high-end equipment manufacturing fields of engineering machinery, shipbuilding, rail transportation, aerospace, marine engineering, military, and nuclear power, as well as important industries in the national economy such as petrochemicals, food, and healthcare. They are also exported to countries and regions such as the United States, Europe, India, Brazil, and Southeast Asia.
